NTE300 - Silicon Complementary Transistors Audio Power Amplifier

📥 Download Datasheet

Datasheet preview – NTE300

Datasheet Details

Part number NTE300
Manufacturer NTE
File Size 19.44 KB
Description Silicon Complementary Transistors Audio Power Amplifier
Datasheet download datasheet NTE300 Datasheet
Additional preview pages of the NTE300 datasheet.

📁 Similar Datasheet

  • NTE30002 - (NTE30002 - NTE30004) Light Emitting Diode (NTE Electronics)
  • NTE30003 - (NTE30002 - NTE30004) Light Emitting Diode (NTE Electronics)
  • NTE30004 - (NTE30002 - NTE30004) Light Emitting Diode (NTE Electronics)
  • NTE30005 - (NTE30005 - NTE30007) Light Emitting Diode (NTE Electronics)
  • NTE30006 - (NTE30005 - NTE30007) Light Emitting Diode (NTE Electronics)
  • NTE30007 - (NTE30005 - NTE30007) Light Emitting Diode (NTE Electronics)
  • NTE30008 - (NTE30008 - NTE30010) Light Emitting Diode (NTE Electronics)
  • NTE30009 - (NTE30008 - NTE30010) Light Emitting Diode (NTE Electronics)
  • NTE30010 - (NTE30008 - NTE30010) Light Emitting Diode (NTE Electronics)
  • NTE30011 - (NTE30011 - NTE30013) Light Emitting Diode (NTE Electronics)
Other Datasheets by NTE
  • NTE3000 - Light Emitting Diode
  • NTE30001 - Infrared Emitting Diode
  • NTE3001 - Light Emitting Diode
  • NTE3007 - Discrete LED Indicators
  • NTE30 - Silicon Complementary Transistors
  • NTE3011 - Discrete LED Indicators
  • NTE3016 - GaP Light.Emitting Diode
  • NTE3017 - Infrared Emitting Diode

Full PDF Text Transcription

Click to expand full text

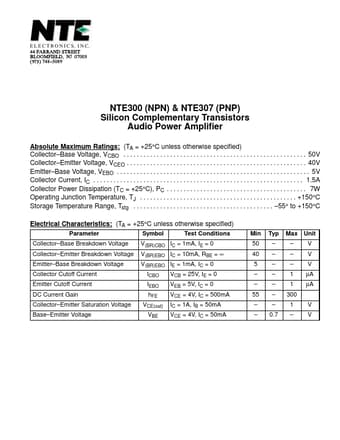

NTE300 (NPN) & NTE307 (PNP) Silicon Complementary Transistors Audio Power Amplifier Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V Collector–Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V Emitter–Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A Collector Power Dissipation (TC = +25°C), PC . . . . . . . . . .
