NTE3001 - Light Emitting Diode

Description

The NTE3001 is a diffused Gallium Arsenide Phosphide diode mounted in a two lead epoxy package with a red diffused lens.

On forward bias, this device emits a spectrally narrow band of visible light which peaks at 660nm.

Features

  • D Low Cost D Bright D Compatible with Integrated Circuits D Long Life, Rugged D Small Size: T.
  • 3/4 D Easily Assembled in Arrays Absolute Maximum Ratings: Power Dissipation (TA = +25°C).
  • . . 80mW Derate linearly from 25°C.
  • . . 1.6mW/°C Forward Current Continuous.

📥 Download Datasheet

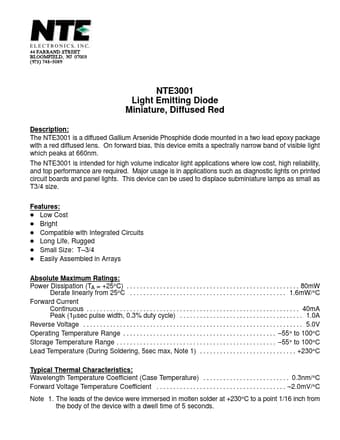

Datasheet preview – NTE3001
