NTE30011 - (NTE30011 - NTE30013) Light Emitting Diode

Product Overview

NTE Electronics

📥 Download Datasheet

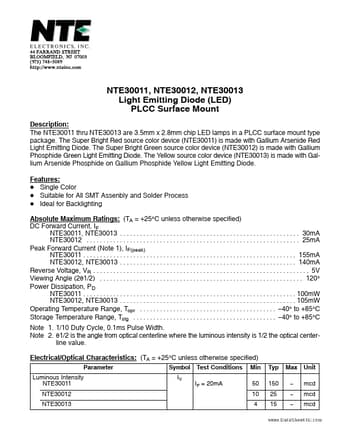

NTE30011 (NTE30011 - NTE30013) Light Emitting Diode by NTE Electronics - Datasheet Preview — Datasheet preview – NTE30011

Datasheet Details

Part number	NTE30011
Manufacturer	NTE Electronics
File Size	71.18 KB
Description	(NTE30011 - NTE30013) Light Emitting Diode
Datasheet	NTE30011 Datasheet
Additional preview pages of the NTE30011 datasheet.

Product details

Description

The NTE30011 thru NTE30013 are 3.5mm x 2.8mm chip LED lamps in a PLCC surface mount type package.

Features

D Single Color D Suitable for All SMT Assenbly and Solder Process D Ideal for Backlighting Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) DC Forward Current, IF NTE30011, NTE30013.
. . . . 30mA NTE30012.
. . . . 25mA Peak Forward Current (Note 1), IF(peak) NTE30011.
