NTE30015 - (NTE30014 - NTE30016) Light Emitting Diode

Product Overview

NTE Electronics

📥 Download Datasheet

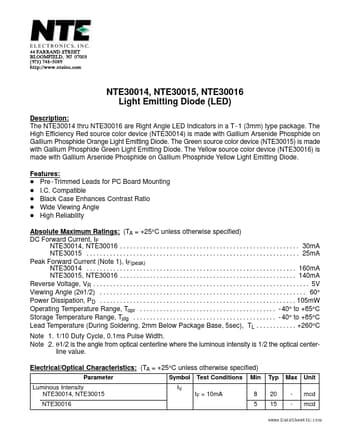

NTE30015 (NTE30014 - NTE30016) Light Emitting Diode by NTE Electronics - Datasheet Preview — Datasheet preview – NTE30015

Datasheet Details

Part number	NTE30015
Manufacturer	NTE Electronics
File Size	29.10 KB
Description	(NTE30014 - NTE30016) Light Emitting Diode
Datasheet	NTE30015 Datasheet
Note	This datasheet PDF includes multiple part numbers: NTE30015, NTE30014. Please refer to the document for exact specifications by model.
Additional preview pages of the NTE30015 datasheet.

Product details

Description

The NTE30014 thru NTE30016 are Right Angle LED Indicators in a T - 1 (3mm) type package.

Features

D Pre - Trimmed Leads for PC Board Mounting D I. C. Compatible D Black Case Enhances Contrast Ratio D Wide Viewing Angle D High Reliability Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) DC Forward Current, IF NTE30014, NTE30016.
. . . . 30mA NTE30015.
. . . . 25mA Peak Forward Curren.
