NTE55, NTE54 - Silicon Complementary Transistors

Name: NTE55
SKU: NTE55-1043122

NTE

📥 Download Datasheet

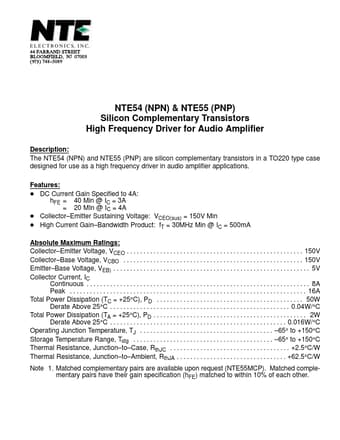

NTE55 Datasheet Preview — This datasheet PDF includes multiple part numbers: NTE55, NTE54. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NTE55, NTE54
Manufacturer	NTE
File Size	23.30 KB
Description	Silicon Complementary Transistors
Datasheet	NTE54_NTEElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: NTE55, NTE54. Please refer to the document for exact specifications by model.

NTE55 Product details

Description

The NTE54 (NPN) and NTE55 (PNP) are silicon complementary transistors in a TO220 type case designed for use as a high frequency driver in audio amplifier applications.

Features

D DC Current Gain Specified to 4A: hFE = 40 Min @ IC = 3A = 20 MIn @ IC = 4A D Collector.
Emitter Sustaining Voltage: VCEO(sus) = 150V Min D High Current Gain.
Bandwidth Product: fT = 30MHz Min @ IC = 500mA Absolute Maximum Ratings: Collector.
Emitter Voltage, VCEO.
. . . 150V Collector.
Base Voltage, VCBO.
