NTE5511

Silicon Controlled Rectifier

NTE5511 Features

* D Designed Especially for High

* Volume Systems D Readily Adaptable for PC Boards and Metal Heat Sinks D Low Switching Losses D High di/dt and dv/dt Capabilities D Shorted Emitter Gate

* Cathode Construction D Forward and Reverse Gate Dissipation Ratings D All

* Diffused Construct

NTE5511 General Description

The NTE5511 thru NTE5513 all

*diffused, three junction, silicon controlled rectifiers (SCR’s) are intended for use in power

*control and power

*switching applications. These devices are available in a TO66 type package and have a blocking voltage capability of up to 600V and a .

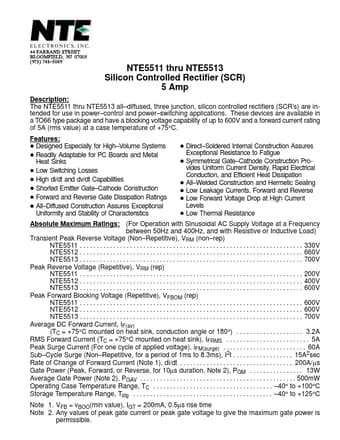

NTE5511 Datasheet (22.63 KB)

Preview of NTE5511 PDF

Datasheet Details

Part number:

NTE5511

Manufacturer:

NTE

File Size:

22.63 KB

Description:

Silicon controlled rectifier.
