NTE5517 - Silicon Controlled Rectifier

📥 Download Datasheet

Datasheet Details

Part number NTE5517
Manufacturer NTE Electronics (defunct)
File Size 18.34 KB
Description Silicon Controlled Rectifier
Datasheet download datasheet NTE5517 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTE5550 (NTE5550 - NTE5558) Silicon Controlled Rectifiers NTE Electronics
NTE5552 Silicon Controlled Rectifiers NTE Electronics
NTE5554 Silicon Controlled Rectifiers NTE Electronics
NTE5556 Silicon Controlled Rectifiers NTE Electronics
NTE5558 Silicon Controlled Rectifiers NTE Electronics

Other Datasheets by NTE Electronics (defunct)

Part Number Description
NTE5511 Silicon Controlled Rectifier
NTE5513 Silicon Controlled Rectifier
NTE5514 Silicon Controlled Rectifier
NTE5516 Silicon Controlled Rectifier
NTE5519 Silicon Controlled Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

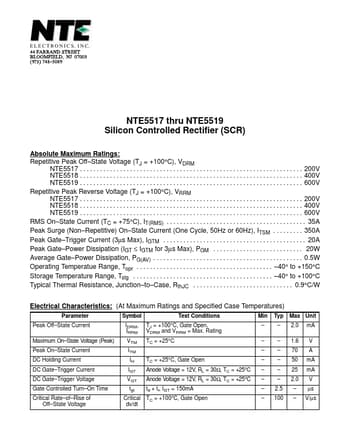

NTE5517 thru NTE5519 Silicon Controlled Rectifier (SCR) Absolute Maximum Ratings: Repetitive Peak Off–State Voltage (TJ = +100°C), VDRM NTE5517 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V NTE5518 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V NTE5519 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V Repetitive Peak Reverse Voltage (TJ = +100°C), VRRM NTE5517 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V NTE5518 . . . . . . . .
