NTE6155 - Silicon Industrial Rectifier

This page provides the datasheet information for the NTE6155, a member of the NTE6154 Silicon Industrial Rectifier family.

Datasheet Summary

Description

The NTE6154 through NTE6165 power rectifiers are stud mounted DO8 type packages.

to metal hermetically sealed case, reliable operation is assured even with extreme humidity and under other severe environmental condition

Features

  • D Standard DO8 Type Package D Availabe in Standard (Cathode to Case) and Reverse (Anode to Case) Polarity D Recommended Stud Mounting Torque: 120in. lbs. Lubricated. Electrical Ratings: Peak Reverse Voltage, PRV NTE6154, NTE6155.
  • . 400V NTE6156, NTE6157.
  • . 600V NTE6158, NTE6159.

📥 Download Datasheet

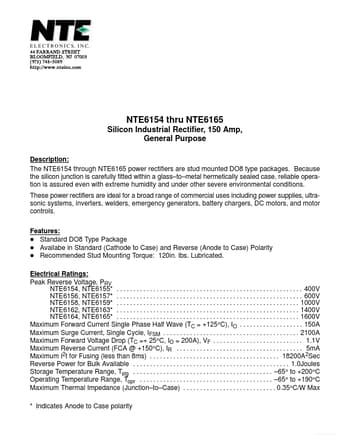

Datasheet preview – NTE6155

Datasheet Details

Part number NTE6155
Manufacturer NTE
File Size 37.51 KB
Description Silicon Industrial Rectifier
Datasheet download datasheet NTE6155 Datasheet
Additional preview pages of the NTE6155 datasheet.

📁 Similar Datasheet

  • NTE615 - Integrated Circuit Voltage Stabilizer for Electronic Tuner (NTE Electronics)
  • NTE6154 - Silicon Industrial Rectifier / 150 Amp / General Purpose (NTE Electronics)
  • NTE615P - Integrated Circuit Voltage Stabilizer for Electronic Tuner (NTE Electronics)
  • NTE610 - Voltage Variable Capacitance Diode (Tuning Diode) (NTE Electronics)
  • NTE6102 - Industrial Rectifier / 550A (NTE Electronics)
  • NTE6109 - Industrial Rectifier / 550A (NTE Electronics)
  • NTE6110 - Industrial Rectifier / 500 Amp (NTE Electronics)
  • NTE6111 - Silicon Power Rectifier Diode / 1100 Amp (NTE Electronics)
  • NTE6112 - Industrial Rectifier / 500 Amp (NTE Electronics)
  • NTE6113 - Industrial Rectifier / 1200 Amp (NTE Electronics)
Other Datasheets by NTE
  • NTE6154 - Silicon Industrial Rectifier
  • NTE6156 - Silicon Industrial Rectifier
  • NTE6157 - Silicon Industrial Rectifier
  • NTE6158 - Silicon Industrial Rectifier
  • NTE6159 - Silicon Industrial Rectifier
  • NTE61 - Silicon Complementary Transistors
  • NTE6162 - Silicon Industrial Rectifier
  • NTE6163 - Silicon Industrial Rectifier

Full PDF Text Transcription

Click to expand full text
NTE6154 thru NTE6165 Silicon Industrial Rectifier, 150 Amp, General Purpose Description: The NTE6154 through NTE6165 power rectifiers are stud mounted DO8 type packages. Because the silicon junction is carefully fitted within a glass–to–metal hermetically sealed case, reliable operation is assured even with extreme humidity and under other severe environmental conditions. These power rectifiers are ideal for a broad range of commercial uses including power supplies, ultrasonic systems, inverters, welders, emergency generators, battery chargers, DC motors, and motor controls. Features: D Standard DO8 Type Package D Availabe in Standard (Cathode to Case) and Reverse (Anode to Case) Polarity D Recommended Stud Mounting Torque: 120in. lbs. Lubricated.
