* SNR, 72 dBFS; SFDR, 86 dBc
* Sample rate up to 125 Msps
* Clock input divider by 2 for less jitter contribution
* 3 V, 1.8 V power supplies
* Flexible input voltage range: 1 V to 2 V (peak-to-peak)
* Two configurable serial outputs
* INL ± 1
ADC1413D Datasheet (438.18 KB)

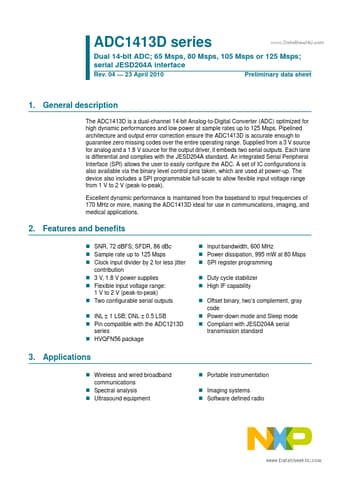

ADC1413D
NXP ↗ Semiconductors
438.18 KB
Dual 14-bit adc.
ADC1413D series
Rev. 04
* 23 April 2010
www.DataSheet4U.com
Dual 14-bit ADC; 65 Msps, 80 Msps, 105 Msps or 125 Msps; serial JESD204A interfa.
