ADC1413D080, ADC1413D065 Dual 14-bits ADC

NXP Semiconductors

Description

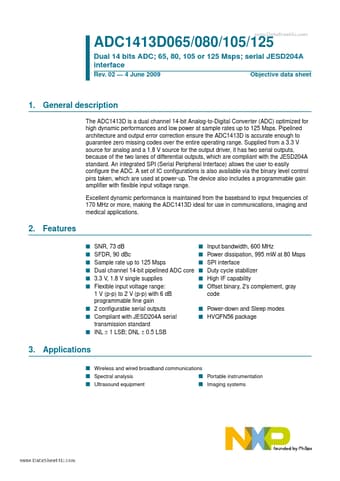

ADC1413D065/080/105/125 Rev.02 * 4 June 2009 www.DataSheet4U.com Dual 14 bits ADC; 65, 80, 105 or 125 Msps; serial JESD204A interface Objec.
The ADC1413D is a dual channel 14-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power at sample rates up to 12.

📥 Download Datasheet

ADC1413D080 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADC1413D080, ADC1413D065. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ADC1413D080, ADC1413D065
Manufacturer: NXP ↗ Semiconductors
File Size: 259.25 KB
Datasheet: ADC1413D065_NXPSemiconductors.pdf
Description: Dual 14-bits ADC
Note: This datasheet PDF includes multiple part numbers: ADC1413D080, ADC1413D065.
Please refer to the document for exact specifications by model.

Features

* I I I I I I SNR, 73 dB SFDR, 90 dBc Sample rate up to 125 Msps Dual channel 14-bit pipelined ADC core 3.3 V, 1.8 V single supplies Flexible input voltage range: 1 V (p-p) to 2 V (p-p) with 6 dB programmable ﬁne gain I 2 conﬁgurable serial outputs I Compliant with JESD204A serial transmission standar
