BT258S-800LT - SCR

Datasheet Summary

Description

Passivated sensitive gate Silicon Controlled Rectifier (SCR) in a SOT428 (DPAK) surface mountable plastic package intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance.

Features

Direct interfacing with low power drivers and microcontrollers.
High bidirectional blocking voltage capability.
High junction operating temperature capability.
High thermal cycling performance.
Planar passivated for voltage ruggedness and reliability.
Surface mountable package.
Very sensitive gate for logic level controls 3.

NXP Semiconductors

📥 Download Datasheet

Datasheet Details

Part number	BT258S-800LT
Manufacturer	NXP Semiconductors
File Size	219.18 KB
Description	SCR
Datasheet	BT258S-800LT Datasheet
Additional preview pages of the BT258S-800LT datasheet.

📁 Similar Datasheet

BT258S-800LT - SCR (WeEn)
BT258S-800R - Thyristors logic level (NXP)
BT258S-800R - thyristor (WeEn)
BT258S-800R - Thyristors (INCHANGE)
BT258S-800R - SCRs (HAOPIN)
BT258S-600R - SCRs (HAOPIN)
BT258S - SCRs (HAOPIN)
BT258 - Thyristors logic level (NXP)
BT258 - SCRs (HAOPIN)
BT258-500R - Thyristors logic level (NXP)

Other Datasheets by NXP Semiconductors

BT236X - 6A Four-quadrant triacs

Full PDF Text Transcription

Click to expand full text

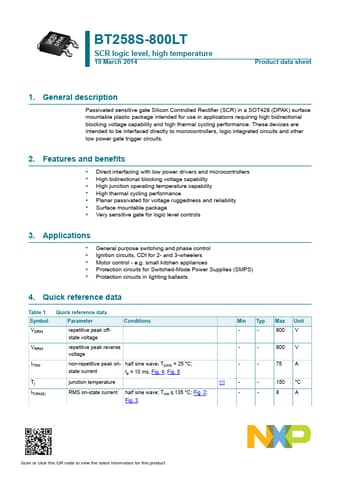

DPAK BT258S-800LT SCR logic level, high temperature 19 March 2014 Product data sheet 1. General description Passivated sensitive gate Silicon Controlled Rectifier (SCR) in a SOT428 (DPAK) surface mountable plastic package intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. 2.
