BUK210-50Y - PowerMOS transistor TOPFET high side switch

Datasheet Summary

Description

Monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic package.

Features

  • Vertical power TrenchMOS Low on-state resistance CMOS logic compatible Very low quiescent current Overtemperature protection Load current limiting Latched overload and short circuit protection Overvoltage and undervoltage shutdown with hysteresis On-state open circuit load detection Diagnostic status indication Voltage clamping for turn off of inductive loads ESD protection on all pins Reverse battery, overvoltage and transient protection.

📥 Download Datasheet

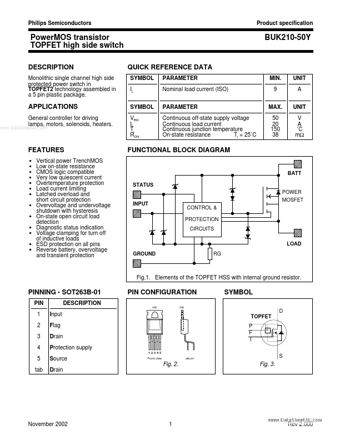

Datasheet preview – BUK210-50Y

Datasheet Details

Part number BUK210-50Y
Manufacturer NXP Semiconductors
File Size 237.55 KB
Description PowerMOS transistor TOPFET high side switch
Datasheet download datasheet BUK210-50Y Datasheet
Additional preview pages of the BUK210-50Y datasheet.

📁 Similar Datasheet

Other Datasheets by NXP Semiconductors
  • BUK213-50Y - (BUK213-50Y / BUK208-50Y) Single channel high-side TOPFET
  • BUK214-50Y - TOPFET high side switch
  • BUK217-50YT - TOPFET high side switch SMD version
  • BUK208-50Y - (BUK213-50Y / BUK208-50Y) Single channel high-side TOPFET
  • BUK220-50Y - TOPFET high side switch
  • BUK223-50Y - PowerMOS transistor TOPFET high side switch
  • BUK224-50Y - TOPFET high side switch
  • BUK118-50DL - Monolithic temperature and overload protected logic level power MOSFET

Full PDF Text Transcription

Click to expand full text
Philips Semiconductors Product specification PowerMOS transistor TOPFET high side switch DESCRIPTION Monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic package. BUK210-50Y QUICK REFERENCE DATA SYMBOL IL SYMBOL VBG IL Tj RON PARAMETER Nominal load current (ISO) PARAMETER Continuous off-state supply voltage Continuous load current Continuous junction temperature On-state resistance Tj = 25˚C MIN. 9 MAX. 50 20 150 38 UNIT A UNIT V A ˚C mΩ APPLICATIONS www.DataSheet4U.com General controller for driving lamps, motors, solenoids, heaters.
