BUK6213-30A - N-Channel MOSFET

Datasheet Summary

Description

N-channel enhancement mode field-effect power transistor in a plastic package using Philips General Purpose Automotive (GPA) TrenchMOS™ technology.

Features

  • s Low on-state resistance s 175 °C rated s Q101 compliant s Intermediate level compatible. 1.3.

📥 Download Datasheet

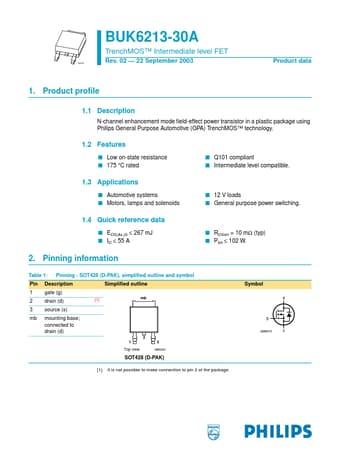

Datasheet preview – BUK6213-30A

Datasheet Details

Part number BUK6213-30A
Manufacturer NXP Semiconductors
File Size 264.35 KB
Description N-Channel MOSFET
Datasheet download datasheet BUK6213-30A Datasheet
Additional preview pages of the BUK6213-30A datasheet.

📁 Similar Datasheet

  • BUK6212-40C - N-channel TrenchMOS intermediate level FET (NXP)
  • BUK6208-40C - N-channel TrenchMOS intermediate level FET (NXP)
  • BUK6209-30C - N-channel TrenchMOS intermediate level FET (NXP)
  • BUK624R5-30C - N-channel TrenchMOS Intermediate Level FET (NXP)
  • BUK625R2-30C - N-channel TrenchMOS intermediate level FET (NXP)
  • BUK637-400B - Power MOS Transistor / Fast Recovery Diode FET (NXP)
  • BUK637-500B - N-Channel MOSFET (INCHANGE)
  • BUK638-1000 - PowerMOS Transistor / Fast Recovery Diode FET (NXP)
  • BUK638-500B - PowerMOS Transistor / Fast Recovery Diode FET (NXP)
  • BUK638-800 - PowerMOS Transistor / Fast Recovery Diode FET (NXP)
Other Datasheets by NXP Semiconductors

Full PDF Text Transcription

Click to expand full text
BUK6213-30A TrenchMOS™ Intermediate level FET M3D300 Rev. 02 — 22 September 2003 Product data 1. Product profile 1.1 Description N-channel enhancement mode field-effect power transistor in a plastic package using Philips General Purpose Automotive (GPA) TrenchMOS™ technology. 1.2 Features s Low on-state resistance s 175 °C rated s Q101 compliant s Intermediate level compatible. 1.3 Applications s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 267 mJ s ID ≤ 55 A s RDSon = 10 mΩ (typ) s Ptot ≤ 102 W. 2.
