BUK9214-75B, TrenchMOS logic level FET

BUK9214-75B TrenchMOS™ logic level FET M3D300 www.DataSheet4U.com Rev.01 * 10 December 2002 Objective data 1.Product proﬁle 1.1 Descript.
N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology, fe.

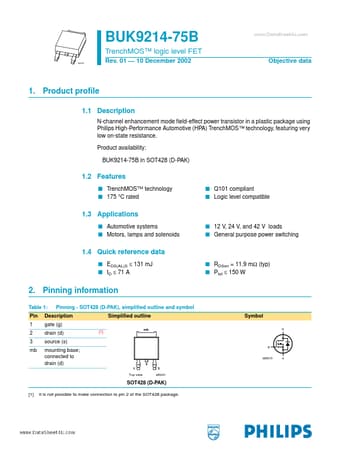

datasheet Preview Page 1 from Datasheet4u.com

BUK9214-75B_NXPSemiconductors.pdf

BUK9214-75B Datasheet Preview — Preview of BUK9214-75B PDF

Datasheet Details

Part number:

BUK9214-75B

Manufacturer:

NXP ↗ Semiconductors

File Size:

246.22 KB

Description:

TrenchMOS logic level FET

Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V, 24 V, and 42 V loads s General purpose power switching 1.4 Quick reference data s EDS(AL)S ≤ 131 mJ s ID ≤ 71 A s RDSon = 11.9 mΩ (typ) s Ptot ≤ 150 W 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT428 (D-PAK), simpliﬁed outline
