BUK9230-100B - TrenchMOS logic level FET

BUK9230-100B Description

BUK9230-100B TrenchMOS™ logic level FET M3D300 Rev.01 * 22 January 2004 Product data 1.Product profile 1.1 .
N-channel enhancement mode field-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

BUK9230-100B Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V, 24 V, and 42 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 150 mJ s ID ≤ 47 A s RDSon = 25 mΩ (typ) s Ptot ≤ 167 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT428 (D-PAK), simplified outline

📥 Download Datasheet

Preview of BUK9230-100B PDF

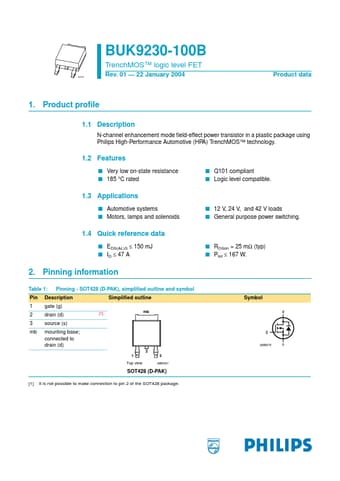

datasheet Preview Page 2 datasheet Preview Page 3
