BUK9209-40B, TrenchMOS logic level FET

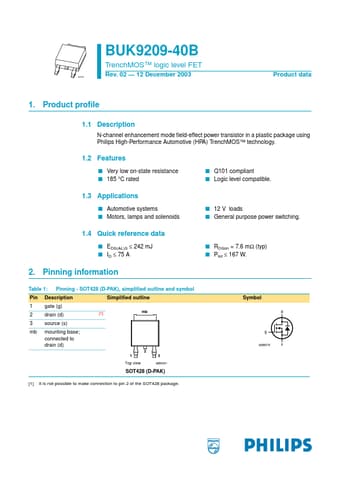

BUK9209-40B TrenchMOS™ logic level FET M3D300 Rev.02 * 12 December 2003 Product data 1.Product proﬁle 1.1 .
N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

datasheet Preview Page 1 from Datasheet4u.com

BUK9209-40B-NXPSemiconductors.pdf

BUK9209-40B Datasheet Preview — Preview of BUK9209-40B PDF

Datasheet Details

Part number:

BUK9209-40B

Manufacturer:

NXP ↗ Semiconductors

File Size:

97.66 KB

Description:

TrenchMOS logic level FET

Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 242 mJ s ID ≤ 75 A s RDSon = 7.6 mΩ (typ) s Ptot ≤ 167 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT428 (D-PAK), simpliﬁed outline and symbol Sim
