ISP1562 - Hi-Speed Universal Serial Bus PCI Host Controller

Description

The ISP1562 is a Peripheral Component Interconnect (PCI)-based, single-chip Universal Serial Bus (USB) Host Controller.

Features

  • s Complies with Universal Serial Bus Specification Rev. 2.0 s Supports data transfer at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) s Two Original USB OHCI cores comply with Open Host Controller Interface Specification for USB Rev. 1.0a s One Hi-Speed USB EHCI core complies with Enhanced Host Controller Interface Specification for Universal Serial Bus Rev. 1.0 s Supports PCI 32-bit, 33 MHz interface compliant with PCI Local Bus Specification Rev. 2.2, with support for.

📥 Download Datasheet

Datasheet preview – ISP1562

Datasheet Details

Part number ISP1562
Manufacturer NXP Semiconductors
File Size 529.16 KB
Description Hi-Speed Universal Serial Bus PCI Host Controller
Datasheet download datasheet ISP1562 Datasheet
Additional preview pages of the ISP1562 datasheet.

📁 Similar Datasheet

  • ISP1561 - Hi-Speed USB PCI host controller (NXP)
  • ISP1501 - Hi-speed Universal Serial Bus Peripheral Transceiver (NXP)
  • ISP1504A - ULPI Hi Speed USB Transceiver (NXP)
  • ISP1504C - ULPI Hi Speed USB Transceiver (NXP)
  • ISP1505A - ULPI Hi Speed USB Transceiver (NXP)
  • ISP1505C - ULPI Hi Speed USB Transceiver (NXP)
  • ISP1506A - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP)
  • ISP1506B - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP)
  • ISP1507 - High Performance Bluetooth 5 Ready Low Energy Module (Insight SiP)
  • ISP1507C - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver (NXP)
Other Datasheets by NXP Semiconductors
  • ISP1563 - Hi-Speed Universal Serial Bus PCI Host Controller
  • ISP1564 - Hi-Speed USB PCI host Controller
  • ISP1507A - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver
  • ISP1507B - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver
  • ISP3582 - Certifed Wireless USB from the USB-IF

Full PDF Text Transcription

Click to expand full text

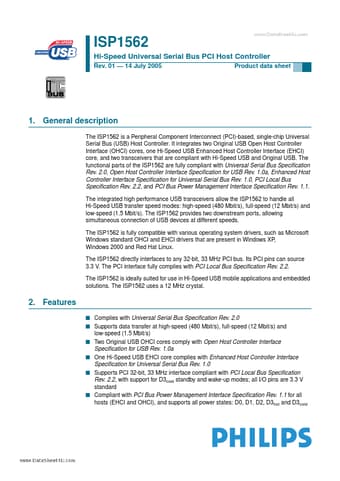

ISP1562 Rev. 01 — 14 July 2005 www.DataSheet4U.com Hi-Speed Universal Serial Bus PCI Host Controller Product data sheet 1. General description The ISP1562 is a Peripheral Component Interconnect (PCI)-based, single-chip Universal Serial Bus (USB) Host Controller. It integrates two Original USB Open Host Controller Interface (OHCI) cores, one Hi-Speed USB Enhanced Host Controller Interface (EHCI) core, and two transceivers that are compliant with Hi-Speed USB and Original USB. The functional parts of the ISP1562 are fully compliant with Universal Serial Bus Specification Rev. 2.0, Open Host Controller Interface Specification for USB Rev. 1.0a, Enhanced Host Controller Interface Specification for Universal Serial Bus Rev. 1.0, PCI Local Bus Specification Rev. 2.
