ISP1563 Datasheet - NXP Semiconductors

ISP1563 Hi-Speed Universal Serial Bus PCI Host Controller

The ISP1563 is a Peripheral Component Interconnect (PCI)-based, single-chip Universal Serial Bus (USB) Host Controller. It integrates two Original USB Open Host Controller Interface (OHCI) cores, one Hi-Speed USB Enhanced Host Controller Interface (EHCI) core, and four transceivers that are complian.

ISP1563 Features

* s Complies with Universal Serial Bus Specification Rev. 2.0 s Supports data transfer at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) s Two Original USB OHCI cores comply with Open Host Controller Interface Specification for USB Rev. 1.0a s One Hi-Speed USB EHCI core compl

ISP1563 Datasheet (573.86 KB)

Preview of ISP1563 PDF

Datasheet Details

Part number:

ISP1563

Manufacturer:

NXP ↗ Semiconductors

File Size:

573.86 KB

Description:

Hi-speed universal serial bus pci host controller.

📁 Related Datasheet

ISP1561 Hi-Speed USB PCI host controller (NXP)

ISP1562 Hi-Speed Universal Serial Bus PCI Host Controller (NXP Semiconductors)

ISP1564 Hi-Speed USB PCI host Controller (NXP Semiconductors)

ISP1501 Hi-speed Universal Serial Bus Peripheral Transceiver (NXP)

ISP1504A ULPI Hi Speed USB Transceiver (NXP)

ISP1504C ULPI Hi Speed USB Transceiver (NXP)

ISP1505A ULPI Hi Speed USB Transceiver (NXP)

ISP1505C ULPI Hi Speed USB Transceiver (NXP)

ISP1506A (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP)

ISP1506B (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP)

TAGS

ISP1563 Hi-Speed Universal Serial Bus PCI Host Controller NXP Semiconductors

Image Gallery

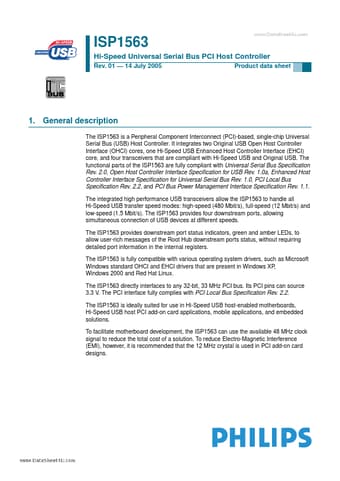

ISP1563 Datasheet Preview Page 2 ISP1563 Datasheet Preview Page 3
