LPC2470 Datasheet - NXP Semiconductors

Flashless 16-bit/32-bit microcontroller

LPC2470 Features

* ARM7TDMI-S processor, running at up to 72 MHz.

* 98 kB on-chip SRAM includes:

* 64 kB of SRAM on the ARM local bus for high performance CPU access.

* 16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM.

* 16 kB SRAM for general purpose DMA use also acces

LPC2470 General Description

NXP Semiconductors designed the LPC2470 microcontroller, powered by the ARM7TDMI-S core, to be a highly integrated microcontroller for a wide range of applications that require advanced communications and high quality graphic displays. The LPC2470 microcontroller is flashless. The LPC2470, with real.

LPC2470 Datasheet (2.55 MB)

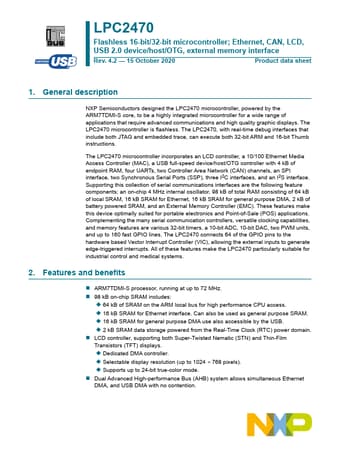

LPC2470 Datasheet Preview — Preview of LPC2470 PDF

Datasheet Details

Part number:

LPC2470

Manufacturer:

NXP ↗ Semiconductors

File Size:

2.55 MB

Description:

Flashless 16-bit/32-bit microcontroller.
LPC2470 Flashless 16-bit/32-bit microcontroller; Ethernet, CAN, LCD, USB 2.0 device/host/OTG, external memory interface Rev. 4.2 15 Octobe.
