P89LPC9107, P89LPC9102 Datasheet - NXP Semiconductors

P89LPC9107, P89LPC9102, (P89LPC9102 - P89LPC9107) 8-bit microcontrollers

P89LPC9102/9103/9107 8-bit microcontrollers with two-clock accelerated 80C51 core 1 kB 3 V byte-erasable Flash with 8-bit A/D converter Rev.02 The P89LPC9102/9103/9107 are single-chip microcontrollers in low-cost 10-pin and 14-pin packages based on a high performance processor architecture th.

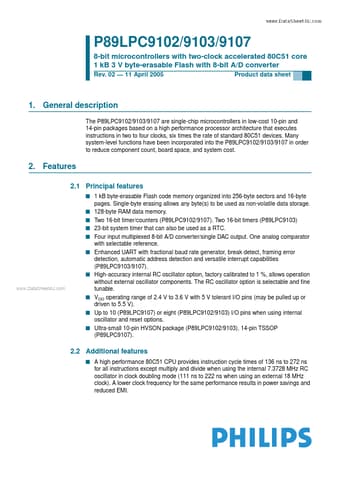

datasheet Preview Page 1 from Datasheet4u.com

P89LPC9102_NXPSemiconductors.pdf

P89LPC9107 Datasheet Preview — This datasheet PDF includes multiple part numbers: P89LPC9107, P89LPC9102. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P89LPC9107, P89LPC9102

Manufacturer:

NXP ↗ Semiconductors

File Size:

328.46 KB

Description:

(P89LPC9102 - P89LPC9107) 8-bit microcontrollers

Note:

This datasheet PDF includes multiple part numbers: P89LPC9107, P89LPC9102.
Please refer to the document for exact specifications by model.

Features

* 2.1 Principal features s 1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage. s 128-byte RAM data memory. s Two 16-bit timer/counters (P89LPC9102/9107). Two 16-bit timers (P89LPC9103) s
