P89LPC913

(P89LPC912 - P89LPC914) 8-bit microcontrollers

P89LPC913 Features

* s 1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage. s 128-byte RAM data memory. s Two 16-bit counter/timers. Each timer may be configured to toggle a port output upon timer overflow or

P89LPC913 General Description

The P89LPC912/913/914 are single-chip microcontrollers in low-cost 14-pin packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system level functions have been incorporated into the P89LPC912.

P89LPC913 Datasheet (386.20 KB)

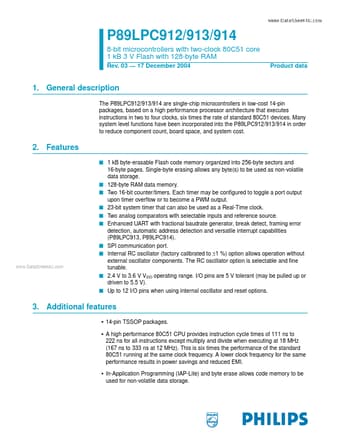

Preview of P89LPC913 PDF

Datasheet Details

Part number:

P89LPC913

Manufacturer:

NXP ↗ Semiconductors

File Size:

386.20 KB

Description:

(p89lpc912 - p89lpc914) 8-bit microcontrollers.
P89LPC912/913/914 8-bit microcontrollers with two-clock 80C51 core 1 kB 3 V Flash with 128-byte RAM Rev. 03

* 17 December 2004 Product data 1.
