PTN3332, High speed differential line receiver

www.DataSheet4U.com PTN3332 High speed differential line receiver Rev.01 * 07 January 2004 Product data 1..
The PTN3332 is a differential line receiver that implements the electrical characteristics of Low-Voltage Differential Signaling (LVDS).

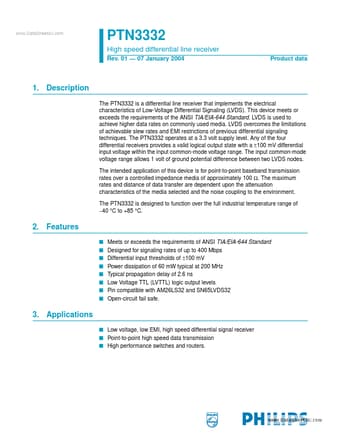

datasheet Preview Page 1 from Datasheet4u.com

PTN3332_NXPSemiconductors.pdf

PTN3332 Datasheet Preview — Preview of PTN3332 PDF

Datasheet Details

Part number:

PTN3332

Manufacturer:

NXP ↗ Semiconductors

File Size:

132.71 KB

Description:

High speed differential line receiver

Features

* s s s s s s s s Meets or exceeds the requirements of ANSI TIA/EIA-644 Standard Designed for signaling rates of up to 400 Mbps Differential input thresholds of ±100 mV Power dissipation of 60 mW typical at 200 MHz Typical propagation delay of 2.6 ns Low Voltage TTL (LVTTL) logic output levels Pin com

Applications

* s Low voltage, low EMI, high speed differential signal receiver s Point-to-point high speed data transmission s High performance switches and routers. Philips Semiconductors www. DataSheet4U. com PTN3332 High speed differential line receiver 4. Pinning information 4.1 Pinning 1B 1A 1Y G 2Y 2A 2B G
