TDA19977B Datasheet - NXP Semiconductors

Triple input HDMI 1.4a compliant receiver interface

TDA19977B Features

* Complies with the HDMI 1.4a, DVI 1.0, CEA-861-D and HDCP (TDA19977A only) 1.4 standards

* Three independent HDMI inputs, up to the HDMI frequency of 205 MHz

* Embedded auto-adaptive equalizer on all HDMI links

* EDID memory: 253 shared bytes and three bytes dedicate

TDA19977B General Description

The TDA19977A; TDA19977B is a three input HDMI 1.4a compliant receiver with embedded EDID memory. The built-in auto-adaptive equalizer, improves signal quality and allows the use of cable lengths of up to 25 m which are laboratory tested with a 0.5 mm (24 AWG) cable at 2.05 gigasamples per second. T.

TDA19977B Datasheet (1.20 MB)

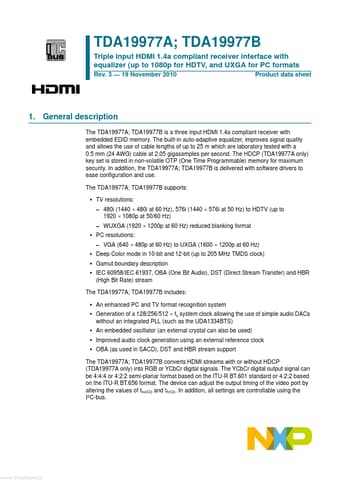

TDA19977B Datasheet Preview — Preview of TDA19977B PDF

Datasheet Details

Part number:

TDA19977B

Manufacturer:

NXP ↗ Semiconductors

File Size:

1.20 MB

Description:

Triple input hdmi 1.4a compliant receiver interface.
TDA19977A; TDA19977B Triple input HDMI 1.4a compliant receiver interface with equalizer (up to 1080p for HDTV, and UXGA for PC formats Rev. 3 .
