TDA19978A Datasheet - NXP Semiconductors

Quad HDMI 1.3a receiver interface

TDA19978A Features

* Complies with the HDMI 1.3a, DVI 1.0, CEA-861-D and HDCP 1.2 standards Four (quad) independent HDMI inputs, up to the HDMI frequency of 205 MHz Embedded auto-ad

TDA19978A General Description

The TDA19978A is a four input HDMI 1.3a compliant receiver with embedded EDID memory. The built in auto-adaptive equalizer improves signal quality and allows the use of cable lengths up to 25 m (laboratory tested with a 0.5 mm (24 AWG) cable at 2.05 gigasamples per second). The HDCP key set is store.

TDA19978A Datasheet (317.35 KB)

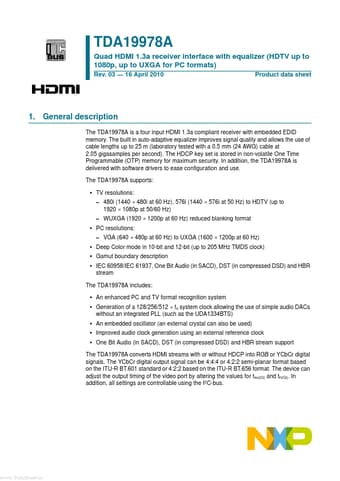

TDA19978A Datasheet Preview — Preview of TDA19978A PDF

Datasheet Details

Part number:

TDA19978A

Manufacturer:

NXP ↗ Semiconductors

File Size:

317.35 KB

Description:

Quad hdmi 1.3a receiver interface.
TDA19978A Quad HDMI 1.3a receiver interface with equalizer (HDTV up to 1080p, up to UXGA for PC formats) Rev. 03 16 April 2010 Product data .
