TDA8954 Datasheet - NXP Semiconductors

2 X 210 W class-D power amplifier

TDA8954 Features

* low quiescent current consumption. The TDA8954 is supplied with two diagnostic pins for monitoring the status of Thermal Fold Back (TFB), Over Current Protection (OCP) and other protection circuits. 2. Features

* High output power in typical applications: SE 2 × 210 W, RL = 4 Ω (VDD = 41

TDA8954 General Description

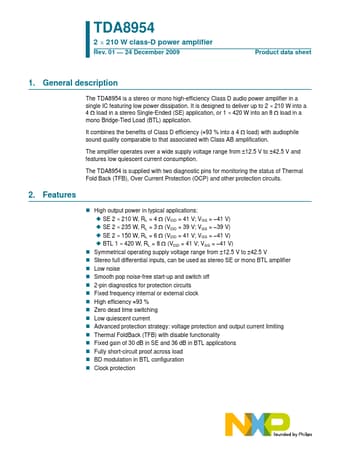

The TDA8954 is a stereo or mono high-efficiency Class D audio power amplifier in a single IC featuring low power dissipation. It is designed to deliver up to 2 × 210 W into a 4 Ω load in a stereo Single-Ended (SE) application, or 1 × 420 W into an 8 Ω load in a mono Bridge-Tied Load (BTL) applicatio.

TDA8954 Datasheet (536.44 KB)
