TDA8920C 2 x 110 W class-D power amplifier

TDA8920C Description

TDA8920C 2 × 110 W class-D power amplifier Rev.02 * 11 June 2009 Product data sheet 1.General .
The TDA8920C is a high-efficiency class-D audio power amplifier.

TDA8920C Features

* low quiescent current consumption. 2. Features I Pin compatible with TDA8950/20B for both HSOP24 and DBS23P packages I Symmetrical operating supply voltage range from ±12.5 V to ±32.5 V I Stereo full differential inputs, can be used as stereo Single-Ended (SE) or mono Bridge-Tied Load (BTL) amplifie

TDA8920C Applications

* N SE 2 × 110 W, RL = 4 Ω (VP = ±30 V) N SE 2 × 125 W, RL = 4 Ω (VP = ±32 V) N SE 2 × 120 W, RL =3 Ω (VP = ±29 V) N BTL 1 × 220 W, RL =8 Ω (VP = ±30 V) I Low noise I Smooth pop noise-free start-up and switch off I Zero dead time switching I Fixed frequency I Internal or external clock I High efficien

📥 Download Datasheet

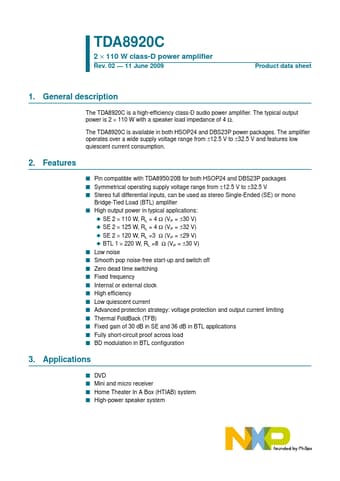

Preview of TDA8920C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA8920C
Manufacturer
NXP ↗
File Size
372.19 KB
Datasheet
TDA8920C-NXP.pdf
Description
2 x 110 W class-D power amplifier
