TDA8944AJ, 2 x 7 W BTL audio amplifier

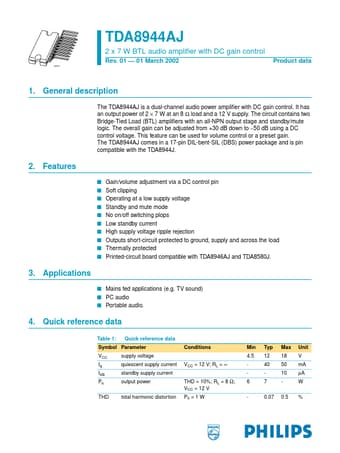

TDA8944AJ 2 x 7 W BTL audio ampliﬁer with DC gain control Rev.01 * 01 March 2002 M3D541 Product data 1.General .
The TDA8944AJ is a dual-channel audio power ampliﬁer with DC gain control.

datasheet Preview Page 1 from Datasheet4u.com

TDA8944AJ-Philips.pdf

TDA8944AJ Datasheet Preview — Preview of TDA8944AJ PDF

Datasheet Details

Part number:

TDA8944AJ

Manufacturer:

Philips

File Size:

135.92 KB

Description:

2 x 7 W BTL audio amplifier

Features

* s Gain/volume adjustment via a DC control pin s Soft clipping s Operating at a low supply voltage s Standby and mute mode s No on/off switching plops s Low standby current s High supply voltage ripple rejection s Outputs short-circuit protected to ground, supply and across the load s Thermally prot

Applications

* s Mains fed applications (e. g. TV sound) s PC audio s Portable audio. 4. Quick reference data Table 1: Quick reference data Symbol Parameter VCC supply voltage Iq quiescent supply current Istb standby supply current Po output power THD total harmonic distortion Conditions VCC = 12 V; RL = ∞ THD =
