TDA8943SF Datasheet - NXP

6 W mono Bridge Tied Load BTL audio amplifier

TDA8943SF Features

* s s s s s s s s s Few external components Fixed gain Standby and mute mode No on/off switching plops Low standby current High supply voltage ripple rejection Outputs short-circuit protected to ground, supply and across the load Thermally protected Printed-circuit board compatible. c c 3. Applicati

TDA8943SF General Description

The TDA8943SF is a single-channel audio power amplifier with an output power of 6 W at an 8 Ω load and a 12 V supply. The circuit contains a Bridge Tied Load (BTL) amplifier with an all-NPN output stage and standby/mute logic. The TDA8943SF comes in a 9-lead single in-line (SIL) medium power package. .

TDA8943SF Datasheet (358.08 KB)

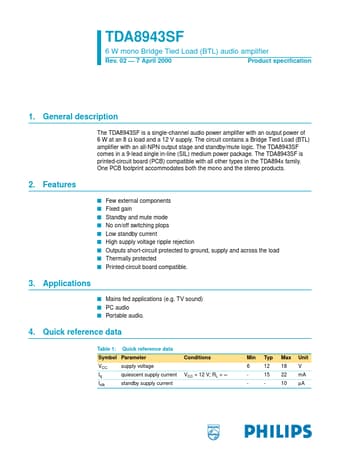

Preview of TDA8943SF PDF

Datasheet Details

Part number:

TDA8943SF

Manufacturer:

NXP ↗

File Size:

358.08 KB

Description:

6 w mono bridge tied load btl audio amplifier.
