TDA8944J Datasheet, Audio Amplifier, NXP

2 x 7 w stereo bridge tied load btl audio amplifier

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	NXP Semiconductors	TDA8944J	TDA8944J-N1,112	IC AMP CLASS AB STEREO 7W DBS17P	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (580.47 KB)

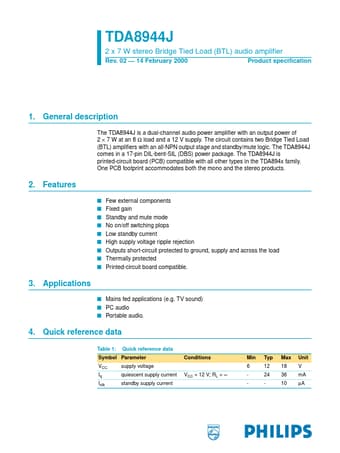

TDA8944J Datasheet Preview Page 1 — Preview of TDA8944J Datasheet

PDF File Details

Part number:

TDA8944J

Manufacturer:

NXP ↗

File Size:

580.47 KB

Download:

📄 Download the TDA8944J Datasheet PDF

Description:

2 x 7 w stereo bridge tied load btl audio amplifier.
The TDA8944J is a dual-channel audio power ampliﬁer with an output power of 2 × 7 W at an 8 Ω load and a 12 V supply.
The circuit contains two Bridge Tied Load (BTL) ampliﬁers with an all-NPN output s.

✔ TDA8944J Features

s s s s s s s s s Few external components Fixed gain Standby and mute mode No on/off switching plops Low standby current High supply voltage ripple rejection Outputs shor

✔ TDA8944J Application

s Mains fed applications (e.g. TV sound) s PC audio s Portable audio. 4. Quick reference data Table 1: VCC
