TDA8945S Datasheet - NXP

15 W mono Bridge Tied Load BTL audio amplifier

TDA8945S Features

* s s s s s s s s s Few external components Fixed gain Standby and mute mode No on/off switching plops Low standby current High supply voltage ripple rejection Outputs short-circuit protected to ground, supply and across the load Thermally protected Printed-circuit board compatible. c c 3. Applicati

TDA8945S General Description

The TDA8945S is a single-channel audio power amplifier with an output power of 15 W at an 8 Ω load and an 18 V supply. The circuit contains a Bridge Tied Load (BTL) amplifier with an all-NPN output stage and standby/mute logic. The TDA8945S comes in a 9-lead single in-line (SIL) power package. The TDA.

TDA8945S Datasheet (363.67 KB)

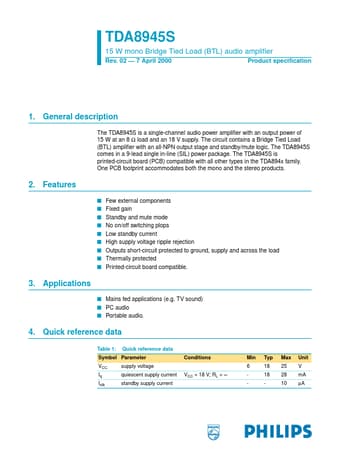

Preview of TDA8945S PDF

Datasheet Details

Part number:

TDA8945S

Manufacturer:

NXP ↗

File Size:

363.67 KB

Description:

15 w mono bridge tied load btl audio amplifier.
