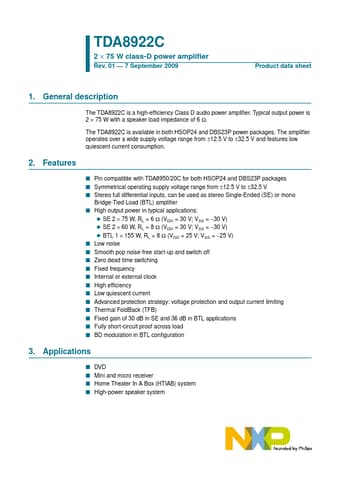

TDA8922CTH Datasheet, Amplifier, NXP

TDA8922CTH Features

• Amplifier low quiescent current consumption. 2. Features I Pin compatible with TDA8950/20C for both HSOP24 and DBS23P packages I Symmetrical operating supply voltage range from ±12.5 V to ±32.5 V

PDF File Details

Part number:

TDA8922CTH

Manufacturer:

NXP ↗

File Size:

209.92kb

Download:

📄 Datasheet

Description:

2 x 75 w class-d power amplifier. The TDA8922C is a high-efficiency Class D audio power amplifier. Typical output power is 2 × 75 W with a speaker load impedance of 6 Ω.

TDA8922CTH Application

• Applications N SE 2 × 75 W, RL = 6 Ω (VDD = 30 V; VSS =
• 30 V) N SE 2 × 60 W, RL = 8 Ω (VDD = 30 V; VSS =
• 30 V) N BTL 1 × 155 W, R
