TJA1086 - FlexRay active star coupler

Description

The TJA1086 is a FlexRay active star coupler that connects two branches of a FlexRay network.

The TJA1086 is compliant with the FlexRay electrical physical layer specification V3.0.1 (see Ref.

1).

Features

  • 2.1 General.
  • Compliant with FlexRay Electrical Physical Layer specification V3.0.1. Fulfills JASPAR requirements Automotive product qualification in accordance with AEC-Q100 Data transfer rates from 2.5 Mbit/s to 10 Mbit/s Supports 60 ns minimum bit time at 400 mV differential voltage Low-power management for battery-supplied ECUs Very low current consumption in AS_Sleep mode Leadless HVQFN44 package with improved Automated Optical Inspection (AOI).

📥 Download Datasheet

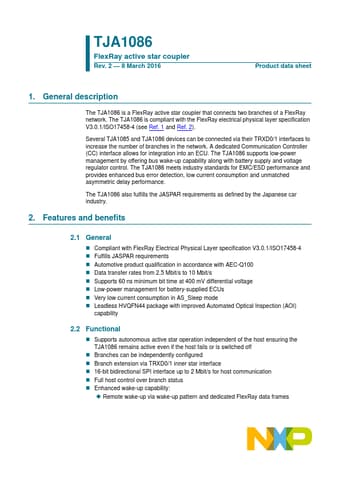

Datasheet preview – TJA1086

Datasheet Details

Part number TJA1086
Manufacturer NXP Semiconductors
File Size 964.43 KB
Description FlexRay active star coupler
Datasheet download datasheet TJA1086 Datasheet
Additional preview pages of the TJA1086 datasheet.

📁 Similar Datasheet

  • TJA1086G - FlexRay active star coupler (NXP)
  • TJA1080 - FlexRay transceiver (NXP)
  • TJA1081 - FlexRay Node Transceiver (NXP)
  • TJA1081G - FlexRay node transceiver (NXP)
  • TJA1082 - FlexRay Node Transceiver (NXP)
  • TJA1083G - FlexRay node transceiver (NXP)
  • TJA1010 - Octal Low Side Driver OLSD (NXP)
  • TJA1020 - LIN transceiver (NXP)
  • TJA1021 - ISO 17987/LIN 2.x/SAE J2602 transceiver (NXP)
  • TJA1022 - Dual LIN 2.2A/SAE J2602 transceiver (NXP)
Other Datasheets by NXP Semiconductors

Full PDF Text Transcription

Click to expand full text
TJA1086 FlexRay active star coupler Rev. 1 — 18 April 2013 Product data sheet 1. General description The TJA1086 is a FlexRay active star coupler that connects two branches of a FlexRay network. The TJA1086 is compliant with the FlexRay electrical physical layer specification V3.0.1 (see Ref. 1). Several TJA1085 and TJA1086 devices can be connected via their TRXD0/1 interfaces to increase the number of branches in the network. A dedicated Communication Controller (CC) interface allows for integration into an ECU. The TJA1086 supports low-power management by offering bus wake-up capability along with battery supply and voltage regulator control.
