74ABT821 10-bit D-type flip-flop

74ABT821 Description

Philips Semiconductors 10-bit D-type flip-flop; positive-edge trigger (3-State) Product specification 74ABT821 .
The 74ABT821 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

74ABT821 Features

* High speed parallel registers with positive edge-triggered D-type flip-flops
* Ideal where high speed, light loading, or increased fan-in are required with MOS microprocessors
* Output capability: +64mA/
* 32mA
* Latch-up protection exceeds 500mA per Jedec Std

📥 Download Datasheet

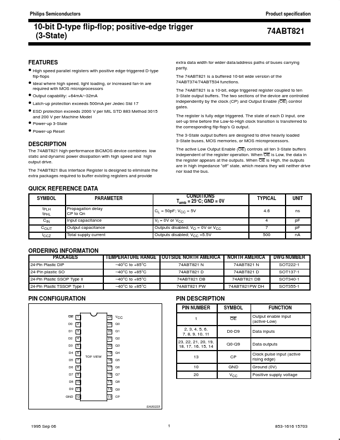

Preview of 74ABT821 PDF
