74ABT823 Datasheet - NXP

74ABT823 - 9-bit D-type flip-flop

The 74ABT823 Bus interface Register is designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider data/address paths of buses carrying parity.

The 74ABT823 is a 9-bit wide buffered register with Clock Enable (CE) and Master Reset (MR) which

74ABT823 Features

* High speed parallel registers with positive edge-triggered D-type flip-flops

* Ideal where high speed, light loading, or increased fan-in are required with MOS microprocessors

* Output capability: +64mA/

* 32mA

* Latch-up protection exceeds 500mA per Jedec Std

74ABT823_PhilipsSemiconductors.pdf

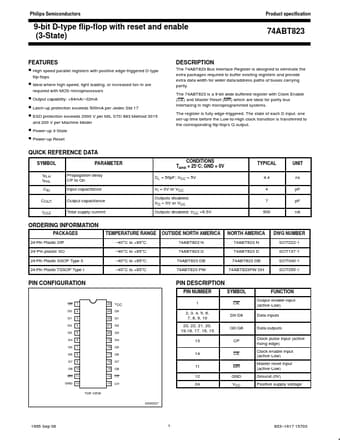

Preview of 74ABT823 PDF
74ABT823 Datasheet Preview Page 2 74ABT823 Datasheet Preview Page 3

Datasheet Details

Part number:

74ABT823

Manufacturer:

NXP ↗

File Size:

69.99 KB

Description:

9-bit d-type flip-flop.
