74AVC16836 Datasheet - NXP

20-bit registered driver

74AVC16836 Features

* Wide supply voltage range of 1.2 V to 3.6 V

* Complies with JEDEC standard no. 8-1A/5/7.

* CMOS low power consumption

* Input/output tolerant up to 3.6 V

* DCO (Dynamic Controlled Output) circuit dynamically changes output impedance, resulting in noise redu

74AVC16836 General Description

The 74AVC16836 is a 20-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP). This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption. To ensure the high-impedance state during power up .

74AVC16836 Datasheet (90.31 KB)

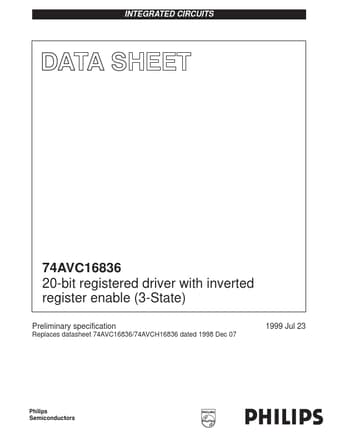

74AVC16836 Datasheet Preview — Preview of 74AVC16836 PDF

Datasheet Details

Part number:

74AVC16836

Manufacturer:

NXP ↗

File Size:

90.31 KB

Description:

20-bit registered driver.
INTEGRATED CIRCUITS 74AVC16836 20-bit registered driver with inverted register enable (3-State) Preliminary specification Replaces datasheet 74AVC168.
