74HC4066 Datasheet, switch equivalent, NXP

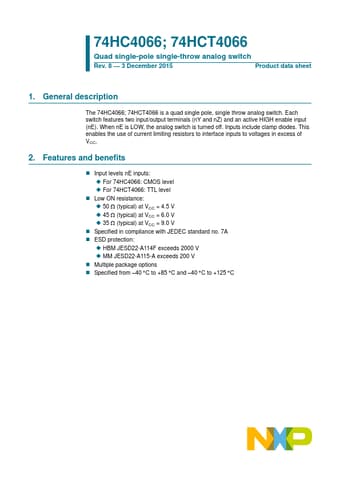

74HC4066 Features

• Switch
• Input levels nE inputs:
• For 74HC4066: CMOS level
• For 74HCT4066: TTL level
• Low ON resistance:
• 50  (typical) at VCC = 4.5 V
• 45

PDF File Details

Part number:

74HC4066

Manufacturer:

NXP ↗

File Size:

219.53kb

Download:

📄 Datasheet

Description:

Quad single-pole single-throw analog switch. The 74HC4066; 74HCT4066 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ
