74HC4066DB Datasheet, Switch, Texas Instruments

74HC4066DB Features

  • Switch
  • Wide analog-input-voltage range: 0 V
      – 10 V
  • Low ON resistance:
      – VCC = 4.5 V: 25 Ω
      – VCC = 9 V: 15 Ω
  • Fast s

PDF File Details

Part number:

74HC4066DB

Manufacturer:

Texas Instruments ↗

File Size:

1.04MB

Download:

📄 Datasheet

Description:

High-speed cmos logic quad bilateral switch. The ’HC4066 and CD74HCT4066 devices contain four independent digitally controlled analog switches that use silicon-gate CMOS technol

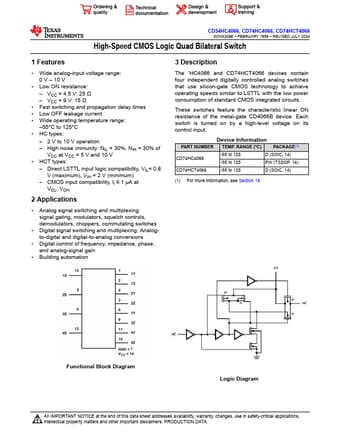

Datasheet Preview: 74HC4066DB 📥 Download PDF (1.04MB)
Page 2 of 74HC4066DB Page 3 of 74HC4066DB

74HC4066DB Application

  • Applications
  • Analog signal switching and multiplexing: signal gating, modulators, squelch controls, demodulators, choppers, commutating sw
