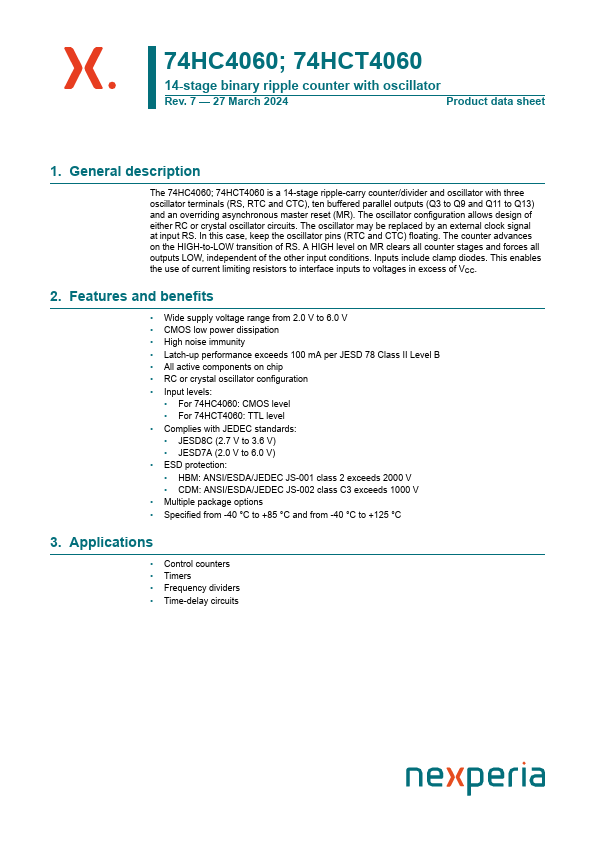

datasheet Preview Page 1 from Datasheet4u.com

74HC4060BQ, 74HC4060 14-stage binary ripple counter

74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator Rev.7 * 27 March 2024 Product data sheet 1.General .
The 74HC4060; 74HCT4060 is a 14-stage ripple-carry counter/divider and oscillator with three oscillator terminals (RS, RTC and CTC), ten buffered para.

74HC4060-nexperia.pdf

74HC4060BQ Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HC4060BQ, 74HC4060. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74HC4060BQ, 74HC4060

Manufacturer:

nexperia ↗

File Size:

317.12 KB

Description:

14-stage binary ripple counter

Note:

This datasheet PDF includes multiple part numbers: 74HC4060BQ, 74HC4060.
Please refer to the document for exact specifications by model.

Features

* Wide supply voltage range from 2.0 V to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
* All active components on chip
* RC or crystal oscillator configuration
* Inp

Applications

* Control counters
* Timers
* Frequency dividers
