80C528

CMOS single-chip 8-bit microcontroller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Philips Semiconductors P80C528FBA Bristol Electronics 4 0
$0

80C528 Datasheet (447.82 KB)

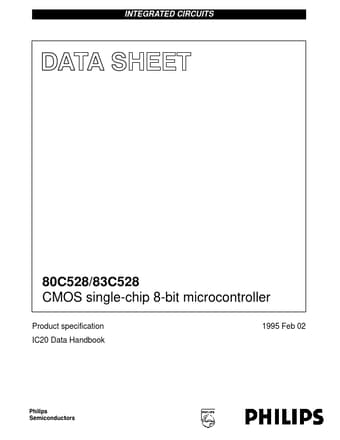

Preview of 80C528 PDF Datasheet

Datasheet Details

Part number:

80C528

Manufacturer:

NXP ↗

File Size:

447.82 KB

Description:

Cmos single-chip 8-bit microcontroller

80C528 Features

* 80C51 instruction set

* 32k × 8 ROM (83C528)

* ROMless (80C528)

* 512 × 8 RAM

* Memory addressing capability 64k ROM and 64k RAM

* Three 16-bit counter/timers

* On-chip watchdog timer with oscillator

* Full duplex UART

* I2C

80C528 General Description

The 8XC528 single-chip 8-bit microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The 8XC528 has the same instruction set as the 80C51. Three versions of the derivative exist: ROM multi-source, two-priority-level, nested interrupt stru.
