83C528 - CMOS single-chip 8-bit microcontroller

Datasheet Summary

Description

The 8XC528 single-chip 8-bit microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family.

The 8XC528 has the same instruction set as the 80C51.

Features

80C51 instruction set.
32k × 8 ROM (83C528).
ROMless (80C528).
512 × 8 RAM.
Memory addressing capability 64k ROM and 64k RAM.
Three 16-bit counter/timers.
On-chip watchdog timer with oscillator.
Full duplex UART.
I2C serial interface.
Four 8-bit I/O ports.
83C528.
32k bytes mask programmable.
80C528.
ROMless version of the 83C528.
87C528.
32k bytes E.

NXP

📥 Download Datasheet

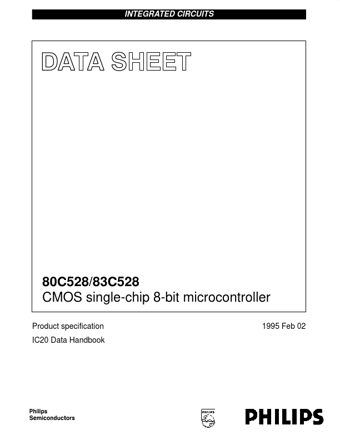

83C528 CMOS single-chip 8-bit microcontroller by NXP - Datasheet Preview — Datasheet preview – 83C528

Datasheet Details

Part number	83C528
Manufacturer	NXP
File Size	447.82 KB
Description	CMOS single-chip 8-bit microcontroller
Datasheet	83C528 Datasheet
Additional preview pages of the 83C528 datasheet.
