AU211D

Voltage comparator

AU211D Features

* APPLICATIONS

* Operates from single 3 V supply (LM311B)

* Maximum input bias current: 150 nA (LM311: 250 nA)

* Maximum offset current: 20 nA (LM311: 50 nA)

* Differential input voltage range: ±30 V

* Power consumption: 135 mW at ±15 V

* High sensitiv

AU211D General Description

The LM111 series are voltage comparators that have input currents approximately a hundred times lower than devices like the µA710. They are designed to operate over a wider range of supply voltages; from standard ±15 V op amp supplies down to a single 3 V supply. Their output is compatible with RTL,.

AU211D Datasheet (86.83 KB)

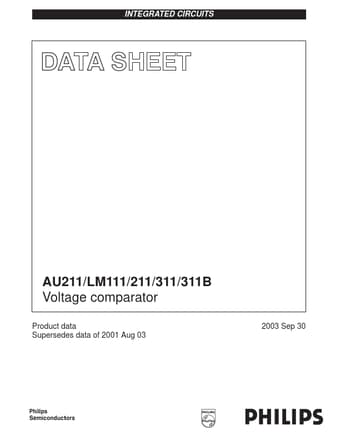

Preview of AU211D PDF

Datasheet Details

Part number:

AU211D

Manufacturer:

NXP ↗

File Size:

86.83 KB

Description:

Voltage comparator.
INTEGRATED CIRCUITS AU211/LM111/211/311/311B Voltage comparator Product data Supersedes data of 2001 Aug 03 2003 Sep 30 Philips Semiconductors Phil.
