BAT754, Schottky barrier double diodes

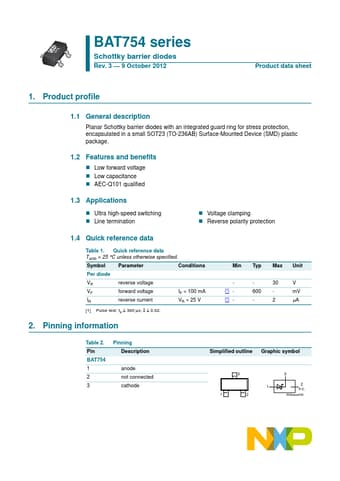

SOT23 BAT754 series Schottky barrier diodes Rev.3 * 9 October 2012 Product data sheet 1.Product profile 1.1 General .
Planar Schottky barrier diodes with an integrated guard ring for stress protection, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (S.

datasheet Preview Page 1 from Datasheet4u.com

BAT754_PhilipsSemiconductors.pdf

BAT754 Datasheet Preview — Preview of BAT754 PDF

Datasheet Details

Part number:

BAT754

Manufacturer:

NXP ↗

File Size:

133.08 KB

Description:

Schottky barrier double diodes

Features

* Low forward voltage
* Low capacitance

Applications

* Ultra high-speed switching
* Line termination
* Voltage clamping
* Reverse polarity protection 1.4 Quick reference data Table 1. Quick reference data Tamb = 25 C unless otherwise specified. Symbol Parameter Conditions Per diode VR reverse voltage VF forward voltage IF = 10
