BAV199 - Low-leakage double diode

NXP

The BAV199 by NXP is a Low-leakage double diode. Below is the official datasheet preview.

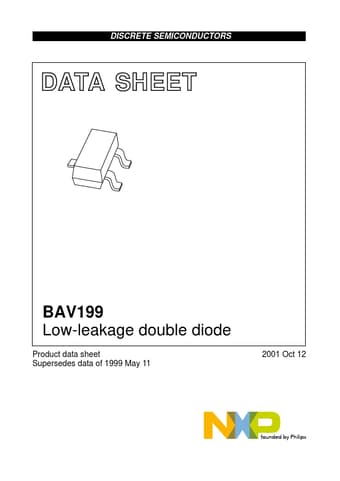

BAV199 Low-leakage double diode by NXP - Datasheet Preview — Official preview page of the **BAV199** Low-leakage double diode datasheet (NXP).

Datasheet Details

Part number	BAV199
Manufacturer	NXP
File Size	71.51 KB
Description	Low-leakage double diode
Datasheet	BAV199_PhilipsSemiconductors.pdf
Additional preview pages of the BAV199 datasheet.

BAV199 Product details

Description

1 anode 2 cathode 3 anode; cathode APPLICATION Low-leakage current applications in surface mounted circuits.DESCRIPTION Epitaxial, medium-speed switching, double diode in a small SOT23 plastic SMD package.The diodes are connected in series.handbook, 4 columns 2 1 Top view 3 21 3 MAM107 Fig.1 Simplified outline (SOT23) and symbol.LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134).SYMBOL PARAMETER CONDITIONS MIN.Per diode VRRM VR IF rep

Features

Plastic SMD package.
Low leakage current: typ. 3 pA.
Switching time: typ. 0.8 µs.
Continuous reverse voltage: max. 75 V.
Repetitive peak reverse voltage: max. 85 V.
Repetitive peak forward current: max. 500 mA.
