BCV61A Datasheet, Transistor, NXP

BCV61A Features

• Transistor
• Low current (max. 100 mA)
• Low voltage (max. 30 V)
• Matched pairs 1.3 Applications
• Applications with working point independent of temperature

PDF File Details

Part number:

BCV61A

Manufacturer:

NXP ↗

File Size:

114.68kb

Download:

📄 Datasheet

Description:

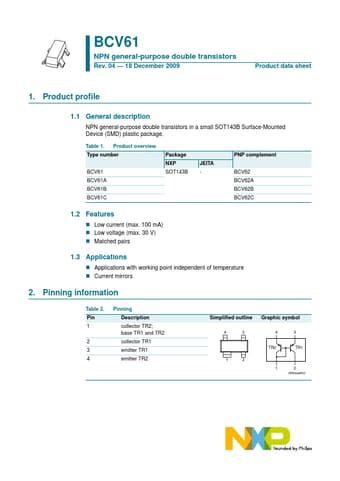

Npn general purpose double transistor. NPN general-purpose double transistors in a small SOT143B Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Ty

BCV61A Application

• Applications
• Applications with working point independent of temperature
• Current mirrors 2. Pinning information Table 2. Pin 1
