BCV62C Datasheet - NXP

PNP general purpose double transistor

BCV62C Features

* Low current (max. 100 mA)

* Low voltage (max. 30 V)

* Matched pair. APPLICATIONS

* For use in applications where the working point must be independent of temperature

* Current mirrors. handbook, halfpage 4 BCV62 PINNING PIN 1 2 3 4 collector TR1 emitter TR

BCV62C General Description

collector TR2; base TR1 and TR2 3 2 1 DESCRIPTION PNP double transistor in a SOT143B plastic package. NPN complement: BCV61. MARKING TYPE NUMBER BCV62 BCV62A MARKING CODE 3Mp 3Jp TYPE NUMBER BCV62B BCV62C MARKING CODE 3Kp 3Lp Top view 1 2 MAM292 TR1 TR2 3 4 Fig.1 Simplified outline (SOT143B.

BCV62C Datasheet (51.16 KB)

BCV62C Datasheet Preview — Preview of BCV62C PDF

Datasheet Details

Part number:

BCV62C

Manufacturer:

NXP ↗

File Size:

51.16 KB

Description:

Pnp general purpose double transistor.

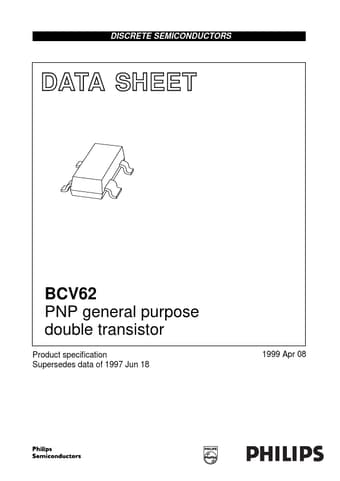

DISCRETE SEMICONDUCTORS DATA SHEET M3D071 BCV62 PNP general purpose double transistor Product speciﬁcation Supersedes data of 1997 Jun 18 1999 Apr .
