BF421L - (BF421L / BF423L) PNP high-voltage transistors

Datasheet Summary

Description

DESCRIPTION PNP transistor in a TO-92; SOT54 plastic package.

NPN complement: BF422L.

Simplified outline (TO-92; SOT54) and symbol.

Features

  • Low current (max. 50 mA).
  • High voltage (max. 300 V).
  • Available with a higher power rating (830 mW) under type number: BF423.

📥 Download Datasheet

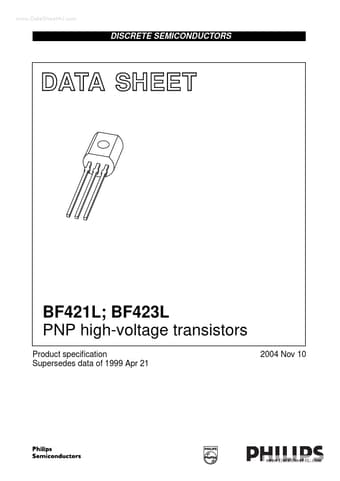

Datasheet preview – BF421L
