BF720

NPN high-voltage transistors

BF720 Features

* Low feedback capacitance. APPLICATIONS

* Class-B video output stages of colour television receivers

* General purpose high voltage circuits. DESCRIPTION NPN transistors in a SOT223 plastic package. PNP complement: BF723. handbook, halfpage 4 2, 4 1 1 Top view 2 3 MAM2

BF720 General Description

NPN transistors in a SOT223 plastic package. PNP complement: BF723. handbook, halfpage 4 2, 4 1 1 Top view 2 3 MAM287 3 PINNING PIN 1 2, 4 3 base collector emitter DESCRIPTION Fig.1 Simplified outline (SOT223) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating Sys.

BF720 Datasheet (53.48 KB)

Preview of BF720 PDF

Datasheet Details

Part number:

BF720

Manufacturer:

NXP ↗

File Size:

53.48 KB

Description:

Npn high-voltage transistors.

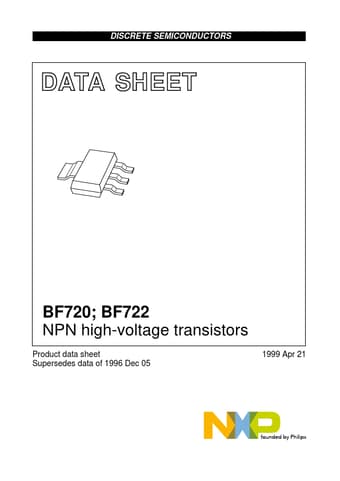

DISCRETE SEMICONDUCTORS DATA SHEET dbook, halfpage M3D087 BF720; BF722 NPN high-voltage transistors Product data sheet Supersedes data of 1996 Dec.
