BF721 - PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR

Features

  • High breakdown and low saturation voltages.

📥 Download Datasheet

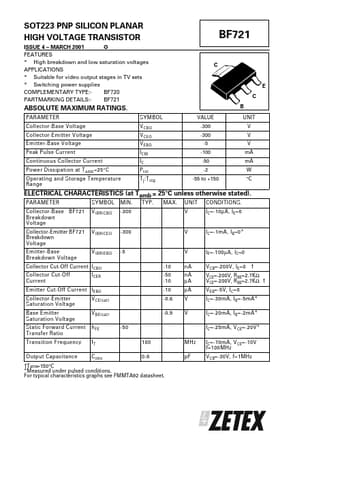

Datasheet preview – BF721

📁 Similar Datasheet

  • BF721 - PNP Silicon High-Voltage Transistors (Siemens Semiconductor Group)
  • BF721T1 - PNP SILICON TRANSISTOR (Motorola Inc)
  • BF721T1G - PNP Silicon Transistor (ON Semiconductor)
  • BF720 - NPN high-voltage transistors (NXP)
  • BF720T1 - NPN Ssilicon Transistor (Motorola Inc)
  • BF720T1G - NPN Silicon Transistor (ON Semiconductor)
  • BF720T3G - NPN Silicon Transistor (ON Semiconductor)
  • BF722 - NPN high-voltage transistors (NXP)
  • BF723 - PNP high-voltage transistor (NXP)
  • BF723 - PNP Silicon High-Voltage Transistors (Siemens Semiconductor Group)
Other Datasheets by Zetex Semiconductors

    Full PDF Text Transcription

    Click to expand full text
    SOT223 PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR ISSUE 4 – MARCH 2001 ✪ FEATURES * High breakdown and low saturation voltages APPLICATIONS * Suitable for video output stages in TV sets * Switching power supplies COMPLEMENTARY TYPE:BF720 PARTMARKING DETAILS:BF721 BF721 C E C B ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at T amb =25°C Operating and Storage Temperature Range SYMBOL V CBO V CEO V EBO I CM IC P tot T j :T stg VALUE -300 -300 -5 -100 -50 -2 -55 to +150 UNIT V V V mA mA W °C ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
