BGM1011

MMIC wideband amplifier

NXP

BGM1011 Features

* Internally matched to 50 Ω

* Very high gain (up to 37 dB at 2 Ghz)

* Sloped gain curve for optimal performance with output into lossy cable

* 14 dBm saturated output power at 1 GHz

* High linearity (23 dBm IP3(out) at 1 GHz)

* 40 dB isolation APPLICA

BGM1011 General Description

6 5 4 1 6 3 4 2, 5 DESCRIPTION Silicon Monolithic Microwave Integrated Circuit (MMIC) wideband amplifier with internal matching circuit in a 6-pin SOT363 SMD plastic package. Top view Marking code: C1-. Fig.1 Simplified outline (SOT363) and symbol. QUICK REFERENCE DATA SYMBOL VS IS |s21.

BGM1011 Datasheet (125.66 KB)

BGM1011 Datasheet Preview — Preview of BGM1011 PDF

Datasheet Details

Part number:

BGM1011

Manufacturer:

NXP ↗

File Size:

125.66 KB

Description:

Mmic wideband amplifier.

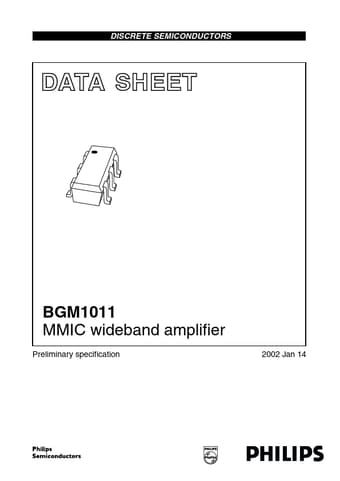

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage MBD128 BGM1011 MMIC wideband amplifier Preliminary specification 2002 Jan 14 Philips Semiconduct.
