BGM1013 Datasheet, Amplifier, NXP

BGM1013 Features

  • Amplifier
  • Internally matched to 50 
  • Good output match to 75 
  • Very high gain; 35.5 dB at 1 GHz
  • Upper corner frequency at 2.1 GHz
  • 31 dB flat gain

PDF File Details

Part number:

BGM1013

Manufacturer:

NXP ↗

File Size:

142.80kb

Download:

📄 Datasheet

Description:

Mmic wideband amplifier. Silicon Monolithic Microwave Integrated Circuit (MMIC) wideband amplifier with internal matching circuit in a 6-pin SOT363 SMD plasti

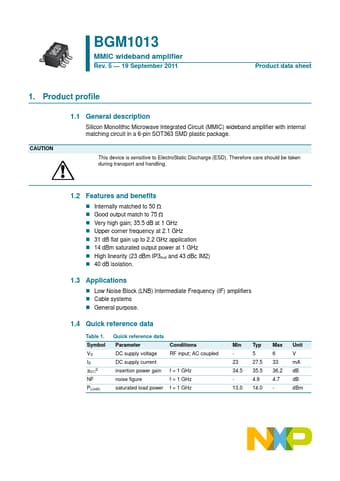

Datasheet Preview: BGM1013 📥 Download PDF (142.80kb)
Page 2 of BGM1013 Page 3 of BGM1013

BGM1013 Application

  • Applications
  • Low Noise Block (LNB) Intermediate Frequency (IF) amplifiers
  • Cable systems
  • General purpose. 1.4 Quick re
